Folio 02
The flight
Numbered from the bottom, Basin Lock to Top Lock. 27.6 m of fall and 1,261 m³ of water for one boat going up.

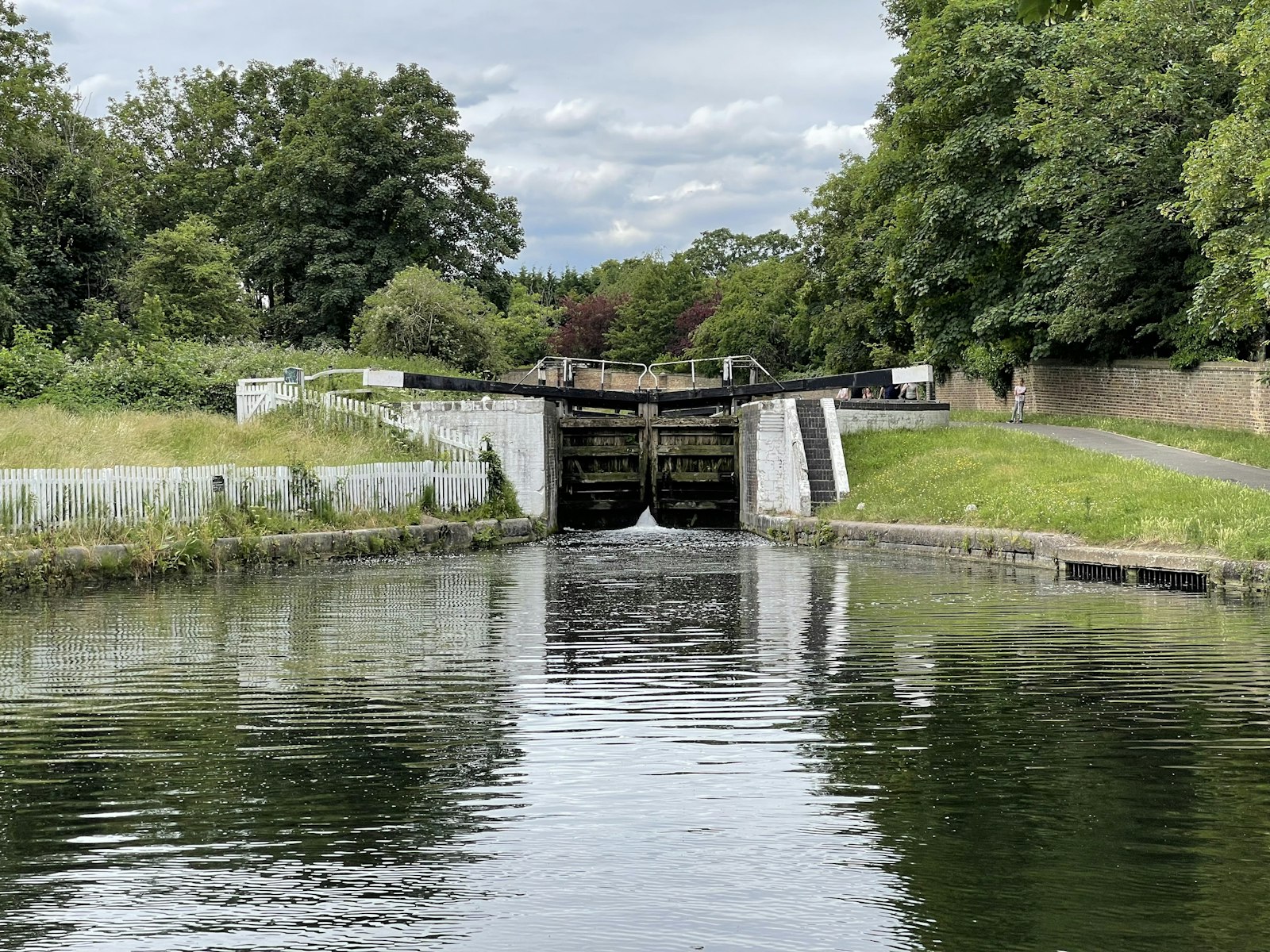

One lock
Lock 7 · Rope Walk Lock
All eleven
Every chamber is 2.2 m wide. Fill times in brackets are with both paddles working.
| Lock | Fall m | Length m | Over cill m | Fill min | Water m³ | Pond | Status |
|---|---|---|---|---|---|---|---|
| 1 Basin Lock | 2.4 | 21.3 | 1.20 | 7 | 112 | No | Open |
| 2 Wharf Lock | 2.6 | 21.3 | 1.15 | 8 | 122 | Yes | Open |
| 3 Tannery Lock | 2.1 | 18.0 | 1.10 | 6 | 83 | No | Open |
| 4 Kiln Lock | 2.3 | 18.0 | 1.10 | 7 | 91 | No | Open |
| 5 Engine Lock | 2.8 | 21.3 | 1.25 | 9 | 131 | Yes | Open |
| 6 Long Pound Lock | 2.5 | 21.3 | 1.20 | 13 (8) | 117 | No | Restricted |
| 7 Rope Walk Lock | 2.6 | 21.3 | 1.20 | 7 | 122 | No | Open |
| 8 Chapel Lock | 2.7 | 21.3 | 1.20 | 8 | 127 | Yes | Open |
| 9 Sluice Lock | 2.9 | 21.3 | 1.25 | 10 | 136 | Yes | Open |
| 10 Toll House Lock | 2.4 | 21.3 | 1.15 | 7 | 112 | No | Restricted |
| 11 Top Lock | 2.3 | 21.3 | 1.20 | 7 | 108 | No | Open |
